Atlantic Grease and Lubricants
Engine Oils
(PCMO & HDDO)

ATLANTIC SUPER TOP FLEET HD-V HDDEO

SAE 10W-40 API CK-4

Fully Synthetic High-Performance Heavy-Duty Diesel Engine Oil

ATLANTIC SUPER TOP FLEET HD-V DIESEL ENGINE OIL SAE 10W-40 API CK-4 is fully synthetic diesel engine oil that help extend engine life, allowing you to run your business with confidence. These products meet or exceed original equipment manufacturer (OEM) requirements and deliver high performance in both on and off-highway applications.

Fully backward compatible, ATLANTIC SUPER TOP FLEET HD-V DIESEL ENGINE OIL SAE 10W-40 API K-4 delivers exceptional performance in both newer and older heavy-duty engine designs. Accordingly, these oils meet or exceed the requirements of API CK-4, CJ-4, CI-4 PLUS, CI-4 and CH-4 service categories, and gasoline engines requiring the API SN, as well as key OEM requirements.

ATLANTIC SUPER TOP FLEET HD-V DIESEL ENGINE OIL SAE 10W-40 API CK-4 is a tailored formulation that delivers excellent wear and engine protection, extended drain capability, outstanding high temperature performance and engine cleanliness. Developed in close collaboration with major OEMs, they are recommended for use in a wide range of heavy-duty applications and operating environments in the trucking, mining, construction, agricultural and marine industries.

Applications

  • Recommended for the latest heavy duty diesel engines, including those equipped with after treatment systems and EGR.
  • Recommended for diesel applications using older and naturally aspirated conventional designs.
  • On-highway heavy-duty trucking and off-highway applications including trucking, mining, construction, agriculture and marine.
  • On-highway applications operating in both high speed/high load and short haul pick-up/delivery service.
  • Off-highway applications operating in severe low speed/heavy load conditions using up to 500 ppm sulfur fuels.
  • Diesel-powered equipment from American, European and Japanese OEMs.

Performance Features And Benefits

  • Meets demanding specifications of key OEMs and latest API gasoline service category - One engine oil for mixed fleet operations
  • Outstanding oxidation stability - Extended ODI capability. Reduced low temperature sludge build-up and high temperature deposits
  • Excellent soot and viscosity control - Greater engine efficiency, long engine life and long oil life
  • Excellent oil consumption control - Lower oil costs due to less make-up oil during operation
  • Outstanding TBN reserves
  • Low temperature fluidity and pumpability
  • Resistance to corrosive and abrasive wear - Long life of critical wear surfaces
  • Component compatibility - Long gasket and seal life
  • Low ash formulation meeting API CK-4 and CJ-4 requirements - Long emissions aftertreatment life (DPF, DOC and SCR)

Recommendations / Specifications

International Standards: API CK-4, CJ-4, CI-4 PLUS, CI-4, CH-4 / SN, ACEA E4, E6, E7, E9, E11, JASO DH-2 OEM Approvals: DTFR 15C100 (MB Approval 228.31)

Meets or exceeds: Isuzu DEO (w/ DPD Equipped Vehicles), Allison TES 439, DQC IV-10 LA, Global DHD-1, Renault RLD-4, Caterpillar ECF-3,

Cummins CES 20086,20081, Volvo VDS-4.5, VDS-4, Mack EOS-4.5, EO-O Premium Plus, MAN M 3275, M 3575, CNH MAT 3521, MTU 2.1, Detroit Fluids Specification 93K222, 93K218, CID A-A-52306 / MIL-PRF-2104G

Typical Technical Properties

Viscosity Grade, SAE J30010W-40
PRODUCT CODE:DEO-24082A
Density at 15⁰C, g/ml, ASTM D40520.858
Cold Cranking Viscosity(CCS), mPa s, ASTM D52935200 @-25⁰C
Kinematic Viscosity at 40⁰C, mm²/s, ASTM D44595.9
Kinematic Viscosity at 100⁰C, mm²/s, ASTM D44515.2
Viscosity Index, ASTM D2270168
Flash Point(COC), °C, ASTM D92230
Pour Point, °C, ASTM D97-39
Total Base Number (TBN), mg KOH/g, ASTM D289610.1
Sulfated Ash, wt%, ASTM D 8740.99
High-Temperature/High-Shear Viscosity @ 150ºC, cP, ASTM D46833.5

Note: These characteristics are typical of current production. While future production will conform to Atlantic’s specification, variations in these characteristics may occur.

ATL/PDS/AL/031b-FS-1609674-A/02*, 01.10.26, Page 1/1
* supersedes all previous versions

Packing : 700 ml ,800 ml , 1L , 2L, 3L, 4L, 5L, 6.5L, 7L, 8L,16L,18L, 20L, 25L, 200L, 205L, 208L, 210L

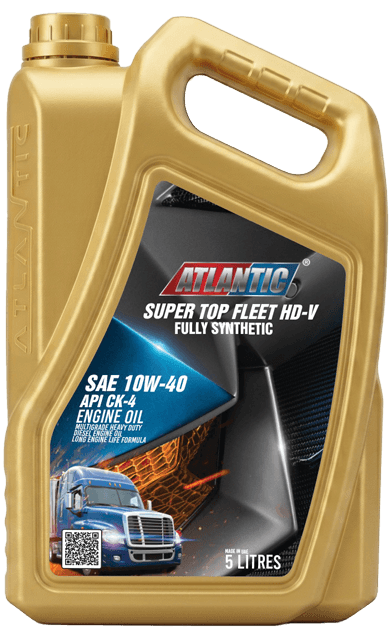

ATLANTIC SUPER TOP FLEET HD-V HDDEO SAE 10W-40 API CK-4
